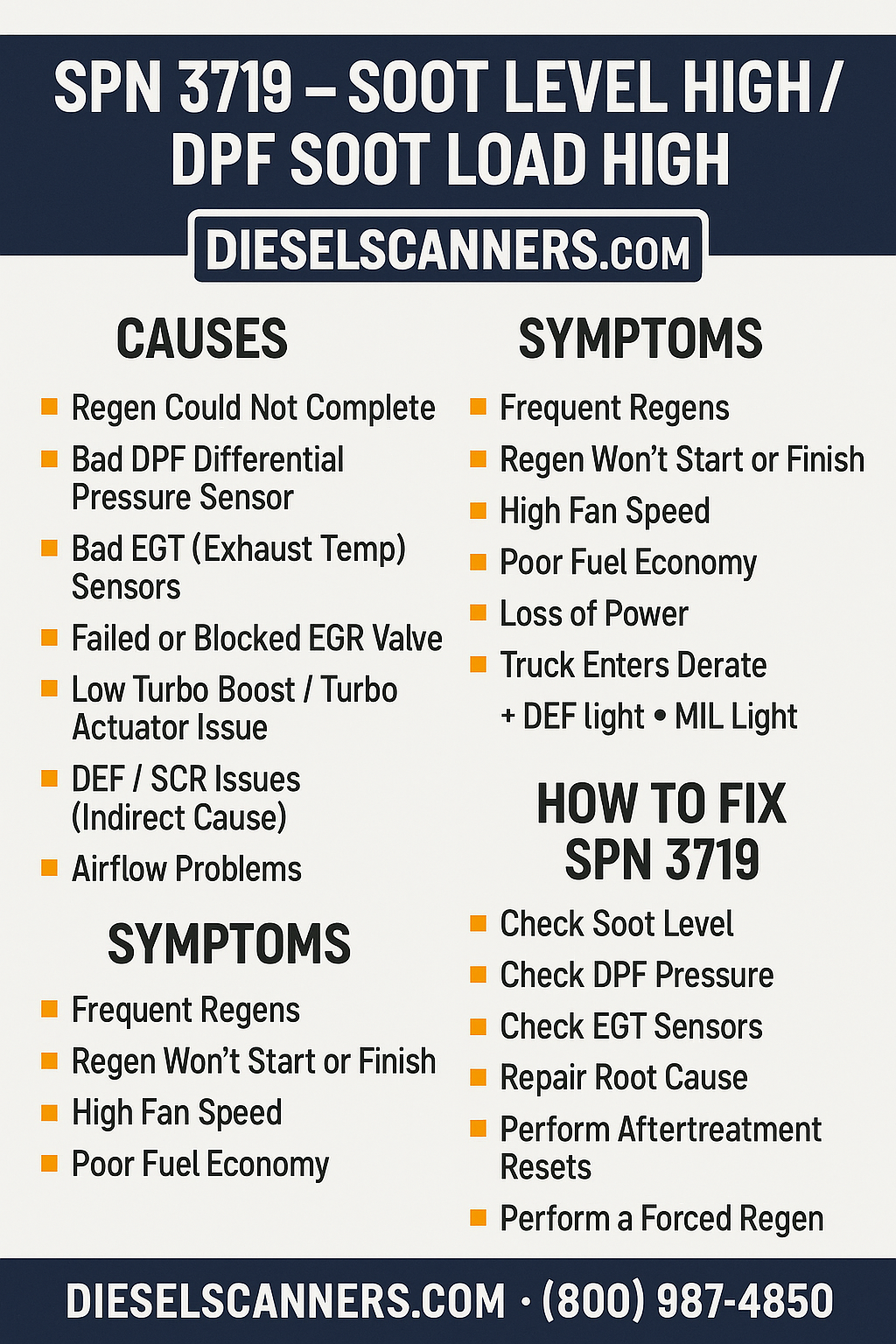

SPN 3719 – Soot Level High / DPF Soot Load High (Full 2025 Fix Guide)

SPN 3719 – Soot Level High / DPF Soot Load High (Full 2025 Fix Guide)

When your truck throws SPN 3719, it means the ECM believes the DPF is overloaded with soot.
This is a high-severity fault that must be fixed ASAP or the truck will:

  • Trigger constant regens

  • Lose power

  • Start derating

  • Hit 5 MPH derate

  • Damage the DPF, turbo, EGR, and SCR

The good news: Most SPN 3719 issues are fixable at home with the right diagnostics.

Fix it now with DieselScanners.

📞 Call: (800)-442-1752
👉 Shop DieselScanners Diagnostic Kits

🚨 What Does SPN 3719 Actually Mean?

SPN 3719 = DPF Soot Load High
It tells you the ECM sees soot accumulation beyond safe limits.

This code appears on:

  • Cummins ISX / X15 / ISB

  • Detroit DD13 / DD15 / DD16

  • Paccar MX-13

  • Volvo / Mack

  • International A26

  • Duramax / Powerstroke

  • Ram 6.7 / Medium Duty trucks

When soot load is too high → the ECM blocks regen until the underlying issue is fixed.

⚠️ Symptoms of SPN 3719

  • Frequent regens

  • Parked regen required

  • Regen won’t start

  • Regen starts but NEVER finishes

  • High fan speed

  • Poor fuel economy

  • “Service Exhaust System”

  • Loss of power

  • High EGT temps

  • DEF light & MIL light

  • Truck enters derate

If soot % rises rapidly → you likely have a sensor or airflow issue.

🔍 What Causes SPN 3719? (Real Reasons Most People Don’t Know)

Here are the real causes in order of likelihood:

1. Regen Could Not Complete (Most Common)

If regen is interrupted or aborted:

  • Soot load rises

  • ECM locks regen

  • SPN 3719 appears

2. Bad DPF Differential Pressure Sensor

If the delta-P sensor reads incorrectly, the ECM thinks the DPF is full even if it’s not.

Common causes:

  • Sensor plugged

  • Water in pressure tubes

  • Cracked pressure lines

This is responsible for 40%+ of SPN 3719 cases.

3. Bad EGT (Exhaust Temp) Sensors

Regen requires 900–1,200°F.

If the ECM can’t read temp → regen is blocked.

4. Failed or Blocked EGR Valve

A stuck-open EGR valve floods the intake with exhaust → soot skyrockets.

5. Low Turbo Boost / Turbo Actuator Issue

If the turbo cannot build boost → exhaust temps stay too low for regen.

6. DEF / SCR Issues (Indirect Cause)

If SCR isn’t ready, regen is blocked.

Common causes:

  • NOx sensor faults

  • DEF dosing issues

  • P207F “DEF quality poor”

7. Airflow Problems (MAP, MAF, Charge Air)

Low intake airflow = low regen temperature.

8. True DPF Overloading

If truck has been idling excessively or regens blocked for too long, the DPF may actually be full.

❌ What NOT to Do When You See SPN 3719

❌ Don’t clear the code

It WILL come back instantly.

❌ Don’t replace the DPF immediately

90% of cases do NOT require DPF replacement.

❌ Don’t attempt regen with a handheld scanner

Generic tools cannot run a REAL regen.

❌ Don’t keep driving

You risk hitting full 5 MPH derate.

🛠️ How to Fix SPN 3719 (Dealer-Level Procedure)

You'll need diesel software:

  • JPRO

  • Diesel Tech

  • Cummins Insite

  • Detroit DDDL

  • Paccar Davie

  • Volvo Tech Tool

These show soot %, pressure, temps, and allow forced regen.

⭐ STEP 1 — Check Soot Level on Diagnostic Software

Soot too high?

  • 100% = regen required

  • 120% = regen blocked

  • 150% = service regen only

  • 200% = DPF may need cleaning

⭐ STEP 2 — Check DPF Differential Pressure Readings

Idle pressure should be:

👉 0.2–0.8 PSI
If pressure is way higher → sensor or tube blockage.

If pressure is too low → sensor failed.

⭐ STEP 3 — Check EGT Sensor Health

Look for:

  • Frozen readings

  • Stuck values

  • Slow response

Bad sensors = regen blocked.

⭐ STEP 4 — Run VGT Turbo and Actuator Tests

Regen requires heat.
If turbo won’t close vanes → no regen.

⭐ STEP 5 — Test the DEF System

Check:

  • DEF pump pressure

  • Doser operation

  • NOx inlet/outlet readings

SCR faults often block regen.

⭐ STEP 6 — Repair the Root Cause

Most common fixes:

  • Replace DPF pressure sensor

  • Clean/replace EGT sensors

  • Clean DEF doser

  • Replace NOx sensor

  • Repair boost leak

  • Fix turbo actuator

  • Repair EGR valve stuck open

⭐ STEP 7 — Perform Required Aftertreatment Resets

Critical resets:

  • DPF differential pressure reset

  • Aftertreatment reset

  • Soot accumulator reset

  • NOx reset

  • DEF system reset

  • Turbo/VGT reset

Skipping this step = code returns.

⭐ STEP 8 — Perform a Forced Regen

A complete forced regen will:

  • Burn off soot

  • Validate the fix

  • Reset soot model

  • Restore full power

💻 Tools You Need to Fix SPN 3719 Properly

You MUST have:

✔ Diesel diagnostic laptop

✔ Nexiq USB-Link 3

✔ Software with aftertreatment controls

✔ Ability to run forced regen

DieselScanners kits include all:

  • Soot % monitoring

  • DPF pressure graphing

  • Aftertreatment resets

  • Forced regen

  • VGT turbo testing

  • Lifetime support

📞 Need help selecting your kit? Call Us: (800) 987-4850

💲 Why Fixing SPN 3719 Yourself Saves Thousands

Dealerships charge:

Service Cost
DPF diagnostic $300–$500
DPF pressure sensor $200–$450
EGT sensors $150–$400 each
DPF cleaning $600–$900
Forced regen $150–$300
Towing (if derated) $300–$1200

Your diesel laptop kit:

👉 Fixes soot load & regen issues
👉 Avoids derate
👉 Works on all future problems
👉 Pays for itself in 1–2 uses

🚛 Fix SPN 3719 Before It Causes Full Derate

SPN 3719 is a last warning before:

  • Complete regen failure

  • Turbo overheating

  • DPF cracking

  • Scr catalyst failure

  • 5 MPH derate
