When your diesel truck throws SPN 3216 FMI 20, it is warning you that the NOx sensor data is unstable, incorrect, or changing too fast. This issue leads directly to:

❌ Failed regens
❌ SCR efficiency faults
❌ DEF derates (SPN 5246)
❌ Check engine + MIL
❌ Severe loss of power

This code appears frequently on:

  • Cummins ISX / X15 / L9

  • Paccar MX-13 / MX-11

  • Detroit DD13 / DD15

  • Volvo/Mack

  • International A26 & MaxxForce

And the ONLY way to fix it correctly is with a professional truck scanner.

📞 Call: (800)-442-1752
👉 Shop DieselScanners Diagnostic Kits

🔍 What SPN 3216 FMI 20 Means

SPN 3216 = NOx Sensor (usually outlet sensor)
FMI 20 = Abnormal rate of change (data changes too quickly)

Translation:

👉 The ECM is getting erratic or unstable readings from the NOx sensor.
This means the aftertreatment system cannot properly calculate emissions reduction.

⚠️ Symptoms You’ll Notice

  • Check engine light

  • SCR system warnings

  • Failed regen attempts

  • DEF consumption increases

  • Poor acceleration

  • Active derate (if paired with SPN 5246)

  • High DEF usage

Once the SCR system sees unstable NOx data, it activates power reduction to protect emissions compliance.

🧰 Most Common Causes of SPN 3216 FMI 20

1️⃣ Failed NOx Sensor (most common)

The sensor overheats, becomes contaminated, or fails internally.

2️⃣ DEF Crystal Buildup in Exhaust

Crystals around the doser can cause abnormal NOx readings.

3️⃣ Wiring or Connector Damage

Melted harnesses
Corrosion
Broken pins

4️⃣ SCR Catalyst Efficiency Issues

If SCR isn’t reducing NOx, readings will fluctuate.

5️⃣ Exhaust Leaks

If air enters the exhaust stream, the sensor readings become unstable.

🛠 How to Diagnose SPN 3216 FMI 20 Using a Truck Scanner

You must use a professional truck scanner to do this correctly.

✅ Step 1 — Read All Active & Inactive Codes

Look for related faults:

  • SPN 4364 (SCR Efficiency)

  • SPN 5246 (DEF Derate)

  • SPN 4094 (DEF Dosing)

  • SPN 3226 (Inlet NOx)

If SPN 5246 is active → your truck is already in a derate chain.

✅ Step 2 — Read Live NOx Sensor Data

Compare:

  • Inlet NOx ppm

  • Outlet NOx ppm

  • NOx conversion percentage

  • Temperature readings

If outlet NOx spikes or drops erratically → sensor is failing.

✅ Step 3 — Perform a NOx Sensor Test

Using your truck scanner, run:

  • NOx Sensor Heater Test

  • NOx Sensor Data Stability Test

  • SCR Efficiency Test

If the heater fails → replace sensor.
If data is unstable → replace sensor.

✅ Step 4 — Inspect Wiring & Connectors

Look for:

  • Melted insulation

  • Corrosion

  • Water intrusion

  • Loose pins

NOx sensor wiring runs near high heat — failures are common.

✅ Step 5 — Replace the NOx Sensor (if required)

After replacement:

✔ Run NOx sensor reset
✔ Run SCR efficiency test
✔ Clear inducement timers
✔ Perform a regen

This step absolutely requires a real truck scanner.

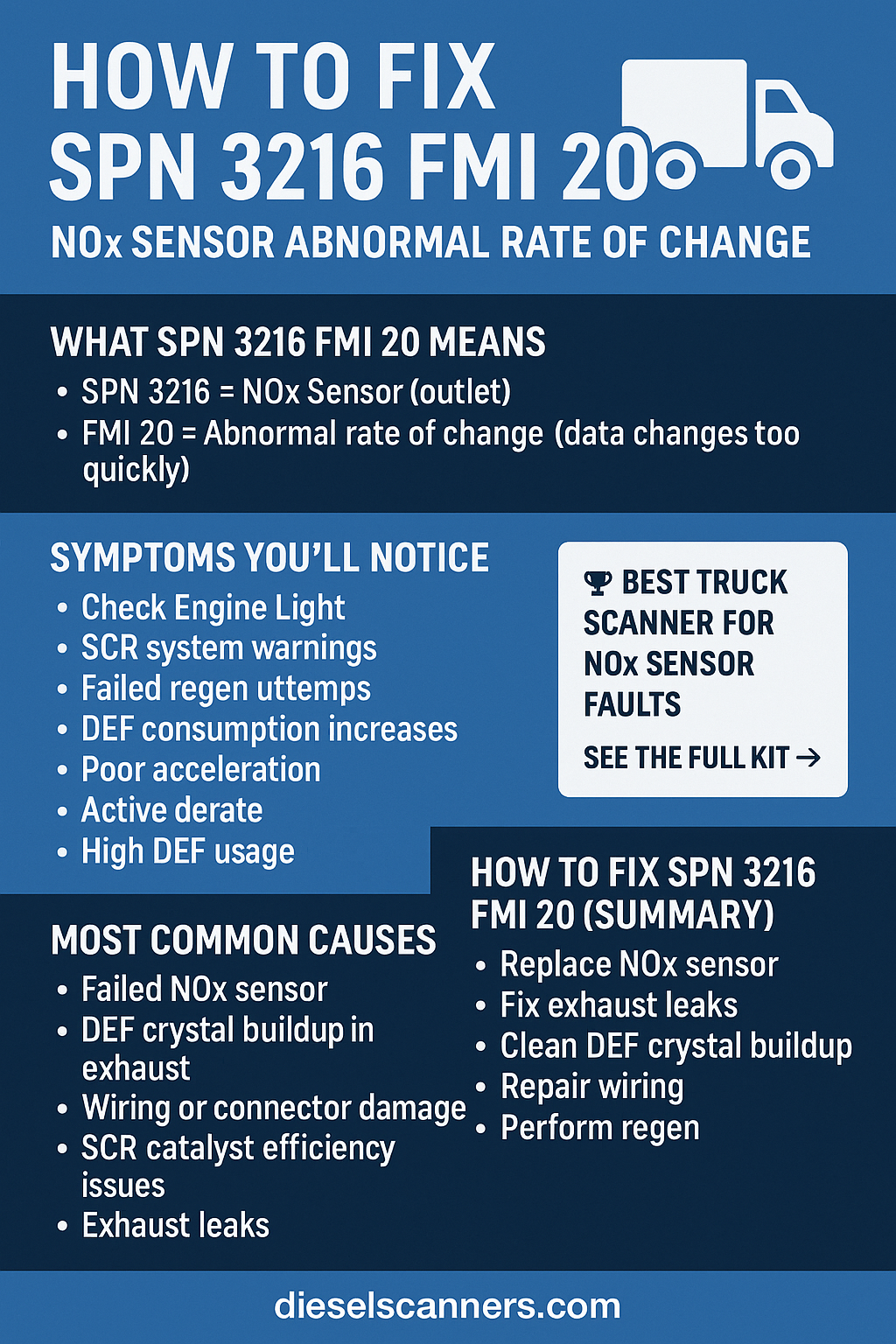

🔧 How to Fix SPN 3216 FMI 20 (Summary)

✔ Replace outlet NOx sensor (most common fix)
✔ Fix exhaust leaks
✔ Clean DEF crystal buildup
✔ Repair wiring
✔ Reset aftertreatment learned data
✔ Perform forced regen
✔ Clear inducement (if active)

Once complete, truck should return to full power.
