If your diesel truck triggers SPN 102 FMI 4, the ECM has detected boost pressure lower than expected for the current engine load.

This is one of the highest-search diesel fault codes because:

  • The truck loses power

  • Turbo performance drops

  • Regens stop working

  • Soot load increases

  • Fuel economy drops

This code affects:

  • Cummins ISB / ISC / ISL / ISX / X15

  • Detroit DD13/DD15

  • Paccar MX-13

  • Volvo/Mack

  • International

📞 Call: (800)-442-1752
👉 Shop DieselScanners Diagnostic Kits

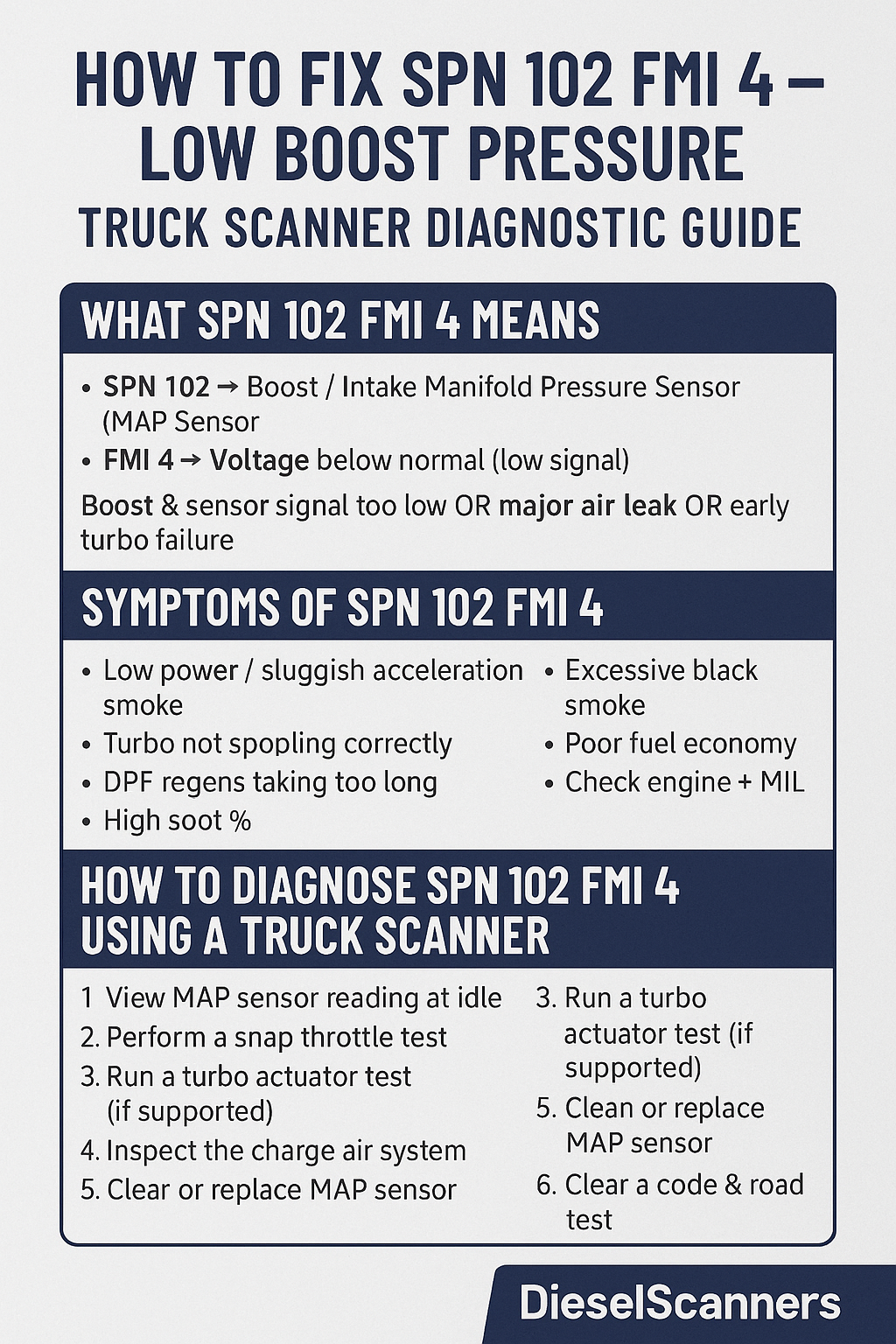

🚨 What SPN 102 FMI 4 Means

SPN 102 = Intake Manifold Pressure (Boost / MAP sensor)
FMI 4 = Voltage below normal (low signal)

The ECM believes:

✔ Boost is too low
✔ Turbo isn’t producing enough pressure
✔ MAP sensor voltage is too low
✔ Airflow does not match fueling

This code almost ALWAYS means:

  • A REAL airflow issue

  • A turbo actuator issue

  • A boost leak

  • A MAP sensor malfunction

⚠️ Most Common Symptoms

You may notice:

  • Sluggish acceleration

  • Black smoke

  • Turbo lag

  • Loud whooshing air sound

  • Won’t regen

  • High soot %

  • VGT actuator faults

  • Turbo overspeed or underspeed

⚠️ Most Common Causes of SPN 102 FMI 4

🔹 1. Boost Leak (MOST COMMON)

Loose clamp, cracked CAC boot, or leaking charge-air cooler.

🔹 2. Failed MAP Sensor

Low signal = low boost reading.

🔹 3. Dirty MAP Sensor

Soot buildup causes inaccurate readings.

🔹 4. Sticking VGT Turbo Vanes

Vaned turbo cannot hit requested boost.

🔹 5. Failed Turbo Actuator

Actuator cannot position vanes correctly.

🔹 6. EGR Valve Stuck Open

Too much exhaust recirculation reduces fresh air → low boost.

🔹 7. DPF Restriction

High backpressure lowers boost response.

🔧 How to Diagnose SPN 102 FMI 4 Using a Truck Scanner

A dealer-level truck scanner (like DieselScanners) is REQUIRED to pinpoint the cause.

1️⃣ Compare Commanded Boost vs Actual Boost

During acceleration:

  • Commanded boost might be 28–38 psi

  • Actual boost might only reach 10–15 psi

Difference of >5 psi = issue detected.

2️⃣ Test the VGT Turbo Actuator

Use your scanner to:

✔ Command vanes to 0% and 100%
✔ Run turbo sweep test
✔ Monitor vane position vs commanded

If actual vane position does NOT match → actuator or turbo is bad.

3️⃣ Inspect MAP Sensor Voltage

Normal MAP voltage:

  • Key on: ~1.0V

  • Idle: ~1.5V

  • Full throttle: ~4.0V

If voltage is low → bad MAP sensor or wiring issue.

4️⃣ Perform a Boost Leak Test

Look for:

✔ Torn CAC boots
✔ Cracked intercooler (very common on Freightliner)
✔ Loose clamps
✔ Oil residue indicating a leak

5️⃣ Check for EGR Valve Malfunction

Command EGR positions:

  • Fully closed at high load

  • If it stays open → low boost

6️⃣ Check Exhaust Backpressure & DPF Status

High soot/load = low boost due to restricted exhaust.

🛠 How to Fix SPN 102 FMI 4 (Based on Root Cause)

✔ If Boost Leak Found

➡ Tighten clamps
➡ Replace CAC boot
➡ Repair or replace charge-air cooler
➡ Re-test boost

✔ If MAP Sensor Dirty or Failed

➡ Clean sensor with MAF cleaner
➡ Replace if voltage is unstable
➡ Clear codes

✔ If VGT Turbo Vanes are Sticking

➡ Perform VGT sweep test
➡ Clean turbo (if serviceable)
➡ Replace turbo if binding

✔ If Turbo Actuator Fails Test

➡ Replace actuator
➡ Calibrate with truck scanner
➡ Run turbo learn procedure

✔ If EGR Valve Stuck Open

➡ Clean or replace valve
➡ Perform EGR flow test
➡ Reset learned values

✔ If DPF Restriction is High

➡ Run forced regen
➡ If regen fails → clean or replace DPF

🚫 MYTHS About SPN 102 FMI 4

❌ “It’s just a sensor issue.”

Most of the time, it’s a REAL turbo or boost leak.

❌ “Clearing the code will fix it.”

No — the ECM immediately rechecks boost.

❌ “A regen will fix it.”

Low boost PREVENTS proper regeneration.

❌ “Boost leaks are rare.”

They are extremely common, especially in cold climates.

⭐ Why You MUST Use a Truck Scanner to Fix SPN 102 FMI 4

To diagnose correctly, your scanner must perform:

✔ Turbo actuator commands
✔ MAP sensor voltage monitoring
✔ Commanded vs actual boost comparison
✔ EGR position tests
✔ VGT sweep & learn procedure
✔ Regeneration initiation
✔ Live data graphing

This is why shops charge $350–$1,000 for this diagnosis.

You can perform the SAME tests with:

🚀 DieselScanners™ Laptop Diagnostic Kit

The most complete diagnostic tool for turbo, boost, and airflow faults.

Why truckers choose DieselScanners:

✔ Full turbo actuator testing
✔ Commanded boost graphing
✔ MAP & EGR diagnostics
✔ Forced regens
✔ Works on all major diesel engines
✔ Pre-installed, activated laptop
✔ No ongoing fees — ever

👉 Fix SPN 102 today at DieselScanners.com

📞 Call: (800)-442-1752
👉 Shop DieselScanners Diagnostic Kits

📌 Final Takeaway

SPN 102 FMI 4 means boost is lower than expected, almost always due to:

  • A real pressure leak

  • Turbo or actuator failure

  • MAP sensor malfunction

  • VGT vane binding

  • EGR overflow

  • DPF restriction

With a truck scanner, you can instantly identify the cause, fix it, recalibrate the turbo, clear the code, and restore full power.
