Monitoring your DPF health is one of the MOST important maintenance tasks for any diesel truck.
Your soot percentage, ash load, and DPF differential pressure tell you:

  • When to regen

  • When the DPF needs cleaning

  • When sensors are failing

  • Whether a derate is coming

  • Whether the DOC or DPF is plugged

  • Why fuel economy is dropping

  • Why the turbo is lagging

This guide breaks down how to read these values, what numbers are normal, and how to diagnose issues before they become expensive repairs.

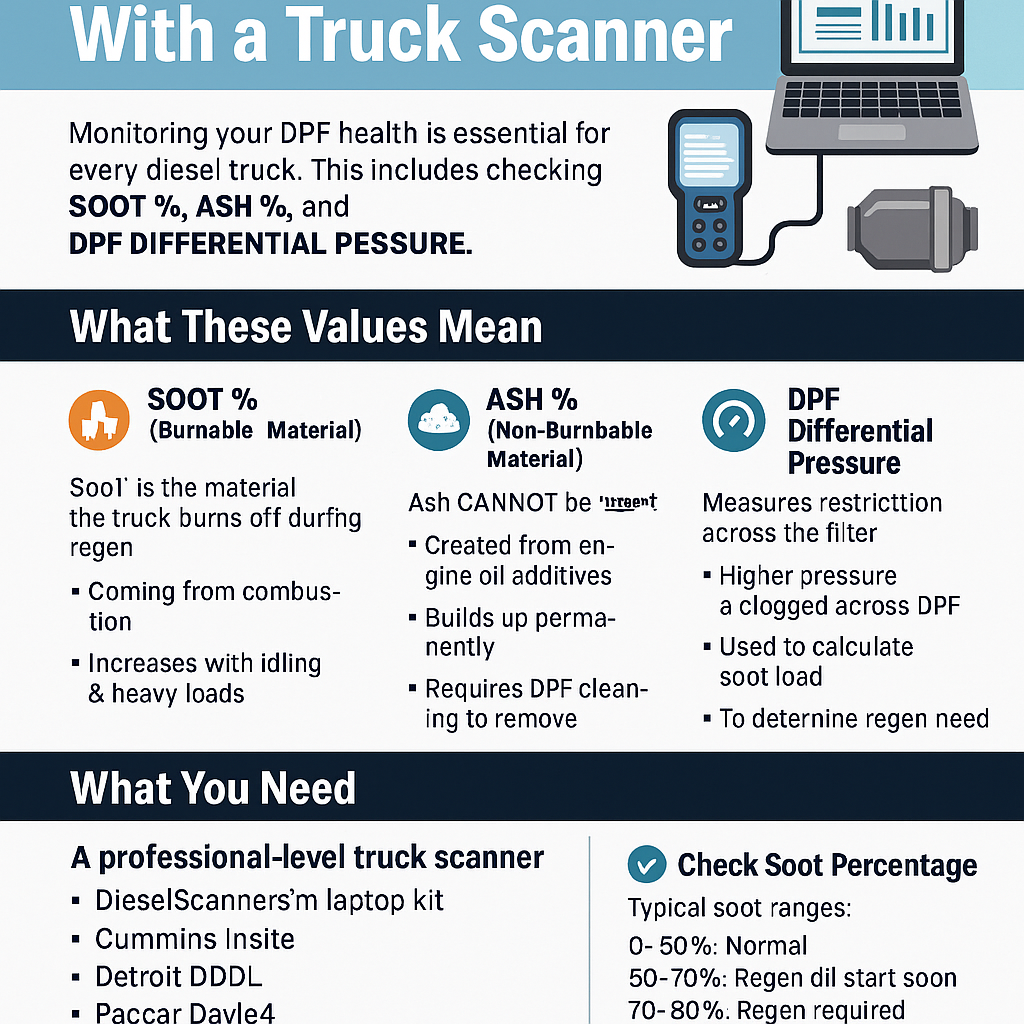

🔍 What These Values Mean

SOOT % (Burnable Material)

Soot is the material the truck burns off during regen.

  • Comes from combustion

  • Increases with idling & heavy loads

  • Removed during regen

ASH % (Non-Burnable Material)

Ash CANNOT be burned off.

  • Created from engine oil additives

  • Builds up permanently

  • Requires DPF cleaning to remove

DPF Differential Pressure

This measures restriction across the filter.

  • Higher pressure = clogged DPF

  • Used to calculate soot load

  • Used to determine regen need

🧰 What You Need

A professional-level truck scanner:

  • DieselScanners™ laptop kit

  • Cummins Insite

  • Detroit DDDL

  • Paccar Davie4

  • Volvo Tech Tool

OBD2 scanners cannot read soot, ash, or pressure accurately.

🟢 How to Check Soot %, Ash %, and DPF Pressure (Any Diesel Engine)

✔ Step 1 — Connect your truck scanner

Plug your RP1210 adapter into the diagnostic port and open the DieselScanners™ software.

✔ Step 2 — Select Aftertreatment Live Data

Look for parameters such as:

  • DPF Soot Load %

  • DPF Ash Load %

  • DPF Differential Pressure

  • DOC/DPF temperature readings

✔ Step 3 — Check Soot Percentage

Typical soot ranges:

  • 0–50%: Normal

  • 50–70%: Regen will start soon

  • 70–90%: Regen required

  • 90–100%: Regen locked out / derate likely

Danger: If soot hits 100%, the DPF MUST be cleaned.

✔ Step 4 — Check Ash Load

Ash levels are long-term indicators:

  • 0–40%: Normal

  • 40–70%: DPF cleaning recommended

  • 70–100%: DPF nearing end of life

  • 100%+: DPF must be baked or replaced

Ash builds slowly — but causes major restrictions.

✔ Step 5 — Check DPF Differential Pressure

Normal values vary by engine but in general:

  • Idle: 0.5–1.5 psi

  • High idle: 1.5–2.5 psi

  • Under load: 3–5 psi (varies)

If pressure is:

  • Too high → DPF is clogged

  • Too low → Differential pressure sensor is faulty

🔧 How to Diagnose Problems Using These Values

Problem: Soot % rising too fast

Possible causes:

  • Weak turbo actuator

  • EGR valve sticking

  • DOC not lighting off

  • Faulty doser injector

Problem: High ash %

Fix:
✔ Remove DPF
✔ Bake or replace
✔ Reset ash values using scanner

Problem: High differential pressure

Fix:
✔ Clean DPF
✔ Replace pressure sensor
✔ Inspect piping for restriction

Problem: Soot % not dropping after regen

Fix:
✔ Temp sensors failing
✔ Doser injector not spraying
✔ Turbo not building heat

🚫 Myths About Soot & Ash Values

❌ “Ash resets during regen.”

No — ash NEVER burns.

❌ “High soot always means a bad DPF.”

Soot rises due to turbo or EGR problems too.

❌ “Differential pressure sensors always read correctly.”

A clogged sensor tube gives false data.

⭐ Why DieselScanners™ Is the Best Tool for Monitoring DPF Health

DieselScanners™ provides:

✔ Accurate soot %
✔ Accurate ash %
✔ True differential pressure readings
✔ Doser tests
✔ Turbo actuator tests
✔ DPF regen capability
✔ No subscriptions
✔ All major engines covered

This gives truckers total control over aftertreatment health.

👉 Keep your DPF alive longer with DieselScanners.com

📌 Final Takeaway

Checking soot, ash, and DPF pressure is essential for preventing:

  • Forced regens

  • Derates

  • Expensive DPF replacement

  • DEF/SCR failures

  • Turbo overheating

A truck scanner is the ONLY reliable way to read these values and diagnose issues early.
