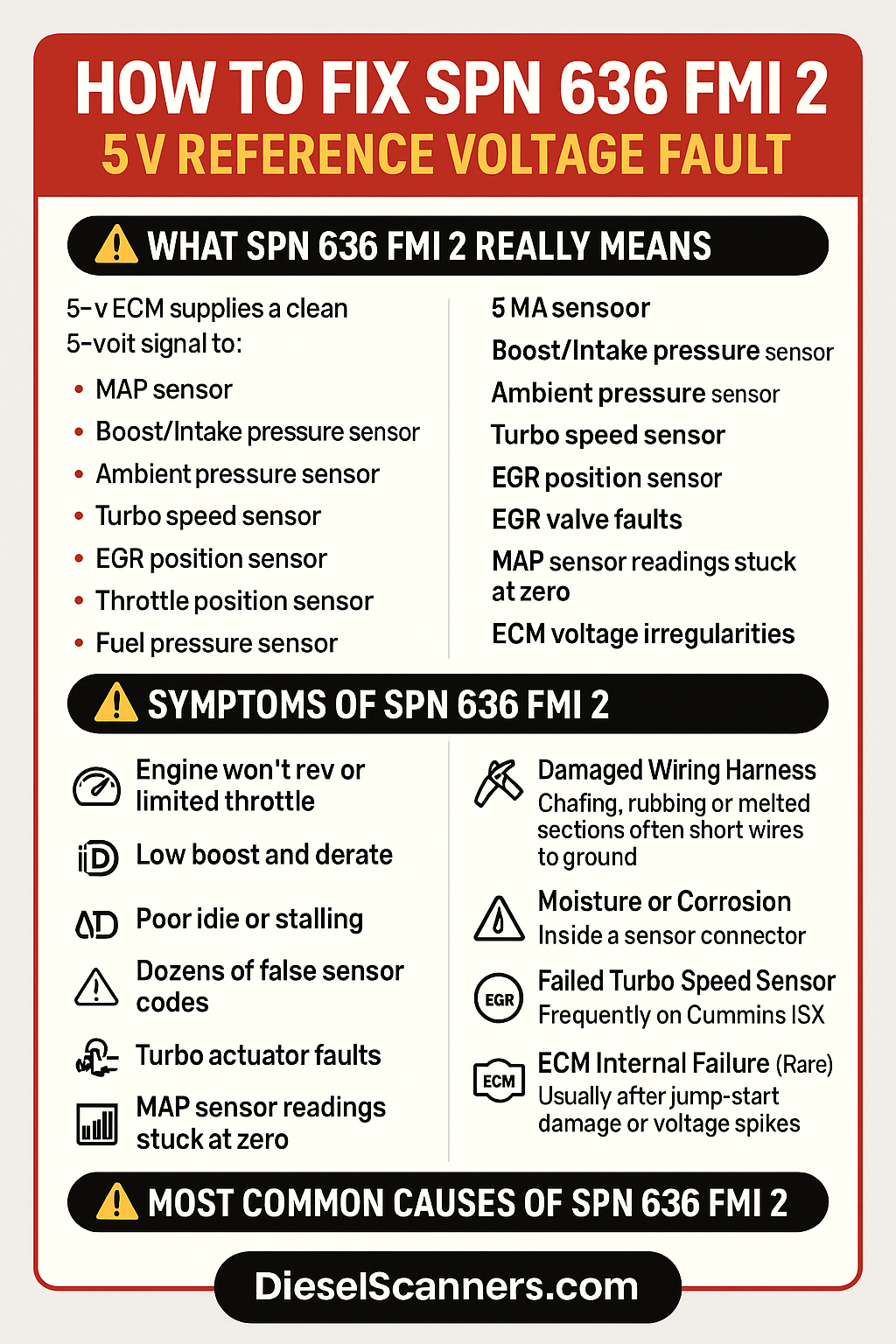

How to Fix SPN 636 FMI 2 (5V Reference Fault)

How to Fix SPN 636 FMI 2 (5V Reference Fault)

SPN 636 FMI 2 means the ECM has detected an issue with the 5-volt reference circuit, which powers multiple critical sensors.

Many trucks instantly derate when this code appears because sensors lose power.

This code is extremely common on:

  • Cummins ISX / X15 / ISB

  • Paccar MX

  • Detroit DD13/DD15

  • Volvo/Mack

  • International

🚨 What SPN 636 FMI 2 Really Means

The ECM supplies a clean 5-volt signal to sensors such as:

  • MAP sensor

  • Boost/Intake pressure sensor

  • Ambient pressure sensor

  • Turbo speed sensor

  • EGR position sensor

  • Throttle position sensor

  • Fuel pressure sensor

FMI 2 = voltage out of range / erratic.

Meaning:

✔ One of these sensors is shorted
✔ The wiring harness is damaged
✔ There is a short to ground or short to power
✔ The 5V circuit is collapsing and dragging all sensors down

⚠️ Symptoms of SPN 636 FMI 2

Truckers often report:

  • Engine won’t rev or limited throttle

  • Low-boost and derate

  • Poor idle or stalling

  • Dozens of false sensor codes

  • Turbo actuator faults

  • EGR valve faults

  • MAP sensor readings stuck at zero

  • ECM voltage irregularities

A 5V reference issue is one of the most disruptive electrical failures.

⚠️ Most Common Causes of SPN 636 FMI 2

🔹 1. Shorted Sensor (MOST COMMON)

Most commonly:

  • MAP sensor

  • Fuel pressure sensor

  • Ambient pressure sensor

  • EGR position sensor

When one sensor shorts internally, it collapses the entire 5V circuit.

🔹 2. Damaged Wiring Harness

Chafing, rubbing, or melted sections often short wires to ground.

🔹 3. Moisture or Corrosion Inside a Sensor Connector

Water intrusion = circuit shorting.

🔹 4. Failed Turbo Speed Sensor

Frequently shorts the 5V line on Cummins ISX.

🔹 5. ECM Internal Failure (Rare)

Usually only after jump-start damage or voltage spikes.

🔧 How to Diagnose SPN 636 FMI 2 Using a Truck Scanner

A scanner is REQUIRED because this fault causes dozens of fake codes.
The scanner isolates which sensor is causing the 5V collapse.

1️⃣ Check All Sensor Readings on the 5V Line

Look for:

  • MAP sensor stuck at 0

  • Fuel pressure reading −40 psi or unrealistic values

  • EGR position frozen

  • Turbo speed reading 0

The sensor with the incorrect reading is usually the one shorted.

2️⃣ Disconnect Sensors One at a Time

This is the fastest way to find the failed sensor:

➡ Disconnect MAP → does 5V return?
➡ Disconnect fuel pressure → does 5V return?
➡ Disconnect EGR position → does 5V return?

When 5V returns, YOU FOUND THE BAD SENSOR.

3️⃣ Use the Scanner to Monitor 5V Reference Live Data

Normal: 4.95–5.05V

If dropping → the short is active.

4️⃣ Inspect Harness Sections Near:

  • EGR valve

  • Intake manifold

  • Frame rail behind battery box

  • Underneath charge air pipes

Chafed wires are extremely common.

5️⃣ Check for Related Codes

Common companion faults:

  • SPN 102 (boost pressure)

  • SPN 164 (fuel pressure)

  • SPN 641 (turbo actuator)

  • SPN 111 (voltage faults)

Electrical noise from the short causes cascading faults.

🛠 How to Fix SPN 636 FMI 2 (Based on Cause)

✔ If a Sensor Is Shorted

➡ Replace the bad sensor
➡ Clear all codes
➡ Recheck 5V reading

✔ If Harness Is Damaged

➡ Repair chafed wiring
➡ Replace corroded pins
➡ Seal connectors
➡ Re-test

✔ If Moisture in Connector

➡ Dry connector
➡ Clean with electrical contact cleaner
➡ Apply dielectric grease

✔ If Turbo Speed Sensor Fails

➡ Replace the sensor
➡ Verify VGT operation afterward

✔ If ECM Failure (Rare)

➡ Replace ECM
➡ Perform programming + injector coding

🚫 MYTHS About SPN 636 FMI 2

❌ “It’s a sensor calibration problem.”

No — this is a short in the 5V circuit.

❌ “If you clear the codes it will fix itself.”

The 5V line collapses instantly again.

❌ “It’s impossible to find the short.”

Incorrect — unplugging sensors one-by-one isolates it fast.

❌ “I only need a new MAP sensor automatically.”

MAP is common, but not always the cause — you MUST test the circuit.

⭐ Why You MUST Use a Truck Scanner for SPN 636 FMI 2

A scanner helps you:

✔ Identify which sensor has failed
✔ Monitor 5V reference voltage
✔ Verify readings after unplugging sensors
✔ Separate REAL faults from false codes
✔ Ensure ECM is not sending incorrect voltage

This fault is impossible to properly diagnose without live sensor data.

🚀 DieselScanners™ Laptop Diagnostic Kit

The BEST tool for electrical, engine, and aftertreatment issues.

Truckers rely on DieselScanners because:

✔ Live 5V reference monitoring
✔ Sensor-by-sensor diagnostics
✔ Turbo & fuel system data
✔ No subscription fees
✔ Works on all major engines
✔ Pre-installed & activated

👉 Fix SPN 636 now at DieselScanners.com

📌 Final Takeaway

SPN 636 FMI 2 = 5-volt reference circuit fault, caused by:

  • A shorted sensor

  • Harness damage

  • Moisture in connectors

  • Turbo speed sensor failure

  • Rarely, ECM failure

This code collapses the 5V supply and triggers multiple other codes — you MUST isolate the bad sensor using a scanner.
