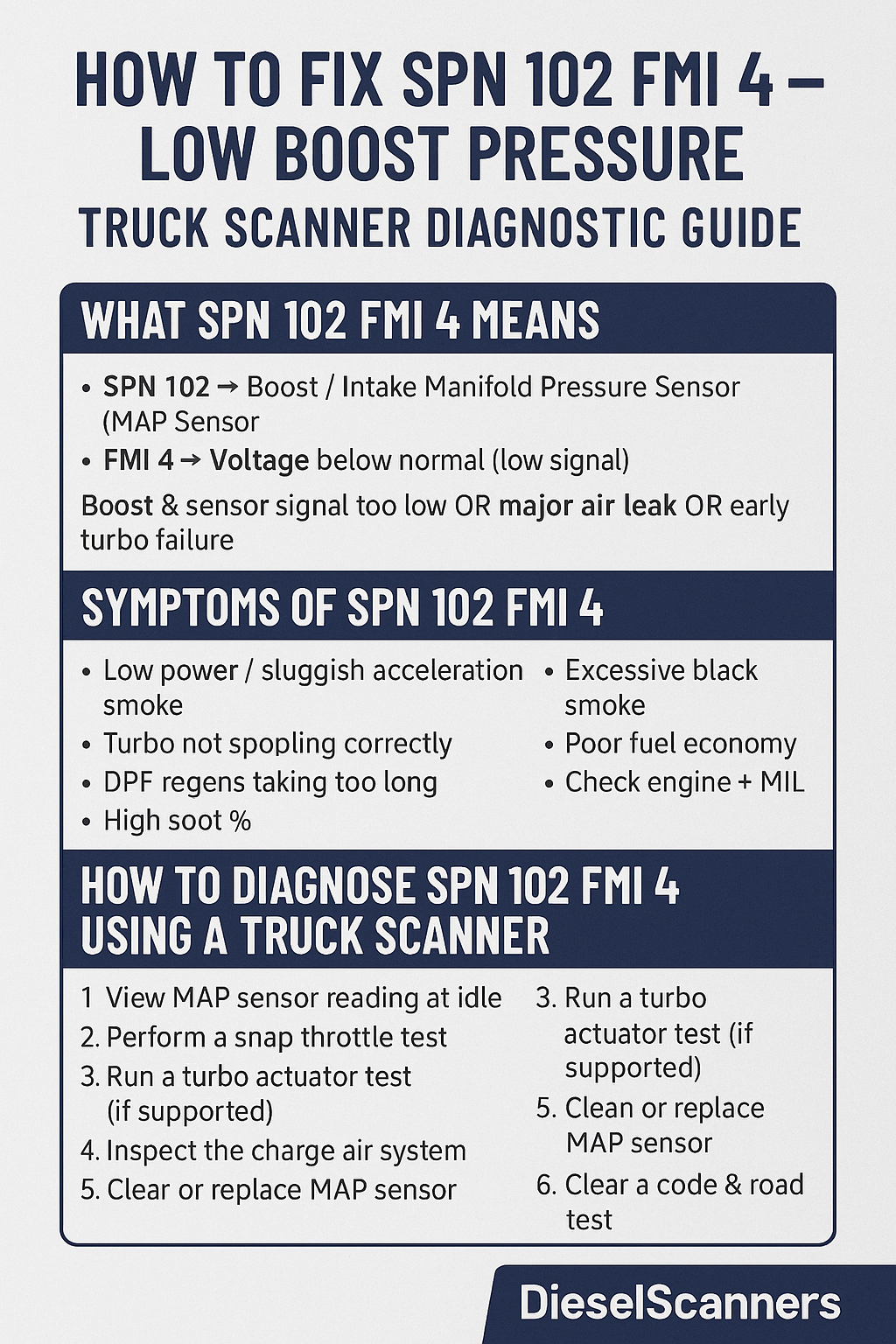

How to Fix SPN 102 FMI 4 – Low Boost Pressure (Truck Scanner Diagnostic Guide)

How to Fix SPN 102 FMI 4 – Low Boost Pressure (Truck Scanner Diagnostic Guide)

If your diesel truck is showing SPN 102 FMI 4, you’re dealing with a low boost pressure signal, one of the most common performance-related fault codes across Cummins, Paccar, Detroit, Volvo, International, and Caterpillar engines.

This code means your ECM is seeing boost pressure lower than expected, which kills power, ruins fuel economy, and often prevents a regen from completing. Fortunately, a truck scanner makes diagnosing this fast and accurate.

🔍 What SPN 102 FMI 4 Means

  • SPN 102 → Boost / Intake Manifold Pressure Sensor (MAP Sensor)

  • FMI 4 → Voltage below normal (low signal)

This usually means:

✔ Boost is too low
✔ Sensor voltage is too low
✔ Wiring is damaged
✔ A major air leak exists

It can also indicate early turbo failure.

⚠️ Symptoms of SPN 102 FMI 4

Drivers commonly notice:

  • Low power / sluggish acceleration

  • Excessive black smoke

  • Turbo not spooling correctly

  • Poor fuel economy

  • DPF regens taking too long

  • Check engine + MIL

  • High soot % because airflow is restricted

This code must be fixed BEFORE attempting a forced regen.

🔧 Most Common Causes

1️⃣ Failed MAP Sensor

Oil contamination or soot buildup reduces sensor accuracy.

2️⃣ Boost Leak

Cracked boots, loose clamps, or a hole in the charge air system.

3️⃣ Clogged CAC (Charge Air Cooler)

Oil saturation reduces airflow.

4️⃣ Turbocharger Problems

Stuck vanes, worn bearings, or actuator issues.

5️⃣ Wiring or Connector Problems

Low voltage caused by:

  • Corroded pins

  • Broken wires

  • Water intrusion

6️⃣ EGR System Issues

Excessive EGR flow reduces available boost.

🛠️ How to Diagnose SPN 102 FMI 4 Using a Truck Scanner

To properly diagnose this code, you need a truck scanner with live data capability.

1️⃣ View MAP Sensor Reading at Idle

Normal values:

  • 14–15 psi (depends on altitude)

If the MAP reads way lower than atmospheric pressure → sensor or wiring issue.

2️⃣ Perform a Snap Throttle Test

Watch boost rise when you rev the engine.

If boost does not spike → turbo, actuator, or air leak issue.

3️⃣ Run a Turbo Actuator Test (if supported)

For variable-geometry turbos:

  • Command 0% → vanes wide open

  • Command 100% → vanes closed

If the actuator fails to respond → turbo actuator or wiring failure.

4️⃣ Inspect the Charge Air System

Check:

  • Boots

  • Clamps

  • Pipes

  • CAC (pressure test if needed)

Boost leaks are the MOST common cause of SPN 102 FMI 4.

5️⃣ Clean or Replace the MAP Sensor

MAP sensors get clogged with soot.

Cleaning sometimes works temporarily, but replacement is often needed.

6️⃣ Clear the Code & Road Test

After repairs:

  • Clear SPN 102 FMI 4

  • Monitor boost under load

  • Watch commanded vs. actual turbo position

If boost stays low → deeper turbo or EGR issue exists.

⭐ Pro Tips

✔ If your MAP reading is stuck at 0.5V or 5V, it’s a wiring or sensor short.

✔ If boost fluctuates wildly, check for VGT actuator failure.

✔ If MAP reads correctly but actual boost is low → check for CAC leaks.

📘 Tools Required

  • DieselScanners laptop kit

  • RP1210 adaptor (Nexiq USB-Link 3)

  • Smoke machine (optional for boost leaks)

  • MAP sensor or turbo components if needed

✅ Final Summary

SPN 102 FMI 4 = Boost pressure reading too low.

Most common fixes:

✔ Repair boost leaks
✔ Replace MAP sensor
✔ Fix wiring issues
✔ Perform VGT actuator test
✔ Repair turbo if not producing boost

A truck scanner is essential to view boost data, run actuator tests, and confirm repairs.
