If your Paccar MX-13 or MX-11 engine shows SPN 1569 FMI 31, you’re dealing with one of the most serious warnings the ECM can throw:

👉 Your truck is entering engine protection derate.

This is a result code — meaning there is another underlying fault triggering the derate. Until the root cause is fixed, your truck will:

  • Continue losing power

  • Enter speed or power limitations

  • Eventually reach a 5 MPH derate if ignored

Let’s break down what it means and how to fix it fast.

🔍 What SPN 1569 FMI 31 Means on a Paccar

SPN 1569 = Engine Protection
FMI 31 = Condition Exists
Description: The ECM has detected an emissions or engine fault severe enough to reduce power.

In simple terms:

⚠️ The engine is protecting itself because something else is wrong.

You must fix the real fault behind it.

⚠️ Symptoms You’ll Notice

  • Loss of power

  • Poor acceleration

  • High exhaust temperatures

  • Failed regens

  • Check engine + MIL lights

  • DEF/SCR warnings

If the underlying issue remains, the derate becomes more severe over time.

🔍 Most Common Causes of SPN 1569 FMI 31

This code is triggered by another active fault. The most common ones on Paccar MX engines include:

1️⃣ SPN 5246 – DEF Derate

SCR system failure, DEF dosing issues, or NOx sensor failure.

2️⃣ SPN 4094 – SCR Efficiency

Indicates emissions reduction system is not working.

3️⃣ SPN 3364 – DEF Quality / Contamination

Bad DEF or failed quality sensor.

4️⃣ SPN 3719 – DPF Soot Load High

Truck needs a regen or DPF cleaning.

5️⃣ EGR Issues

Sticking EGR valve → high soot → derate.

6️⃣ DOC/DPF Temperature Sensor or Pressure Sensor Faults

Bad sensors prevent regen.

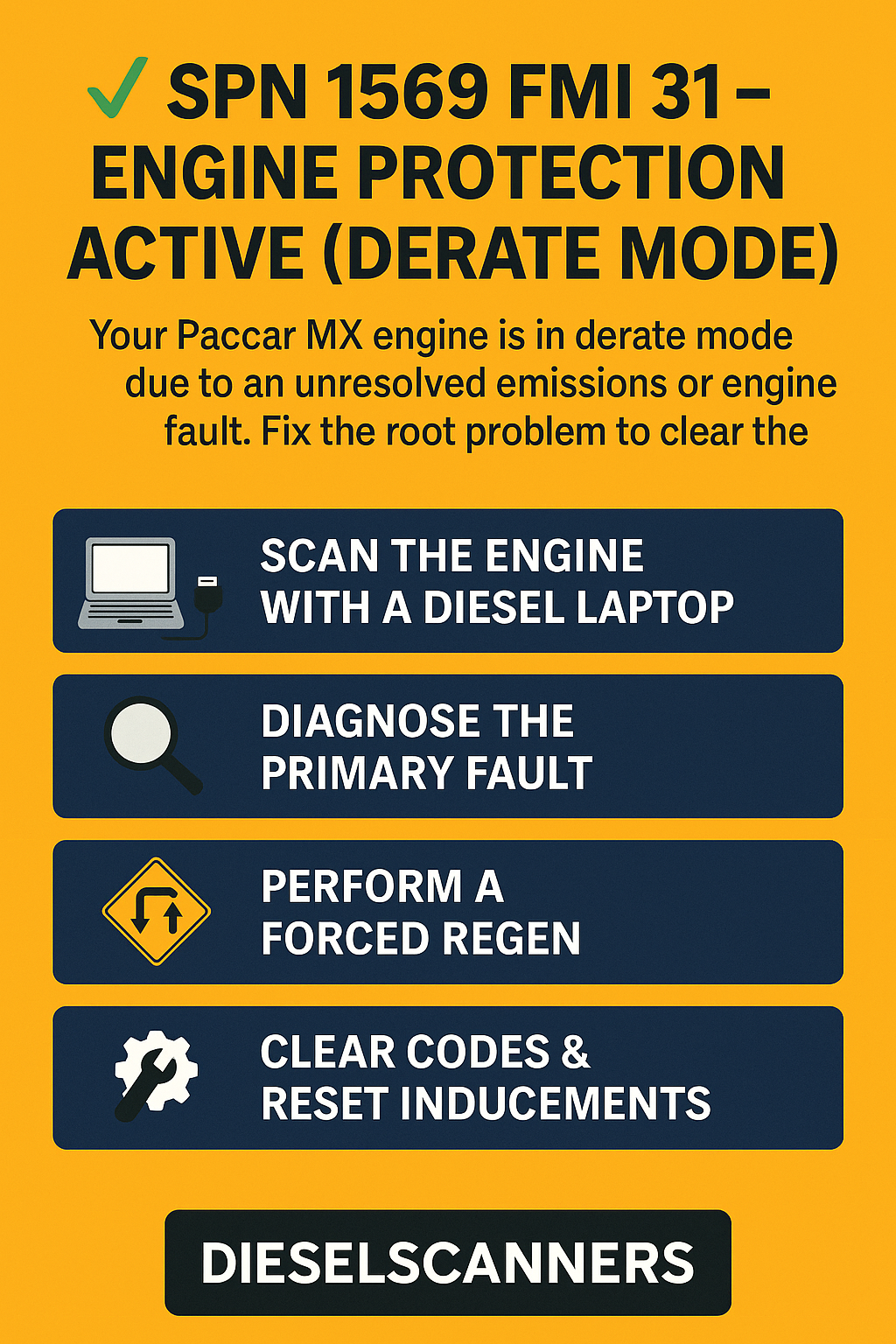

🛠 How to Fix SPN 1569 FMI 31 (Paccar MX Engines)

✅ Step 1: Scan the Engine with a Diesel Laptop

Use:

  • Davie4

  • JPRO

  • Universal Diesel

  • Diesel Tech

Look for ANY other active code — that’s your real problem.

✅ Step 2: Diagnose the Primary Fault

Examples:

If SPN 3364 (DEF Quality):
→ Check DEF, test pump, inspect lines.

If SPN 3719 (DPF Soot Load High):
→ Run forced regen or clean DPF.

If SPN 4094 (SCR Efficiency):
→ Inspect NOx sensors & DEF dosing.

The 1569 derate will not clear until the main cause is fixed.

✅ Step 3: Perform a Forced Regen

Once the underlying codes are resolved:

  • Start a forced regen with your laptop

  • Monitor temps and soot load

  • Wait for regen to complete fully

If regen fails → root cause still present.

✅ Step 4: Clear Codes & Reset Inducements

After successful regen and repairs:

✔ Clear all codes
✔ Reset SCR/DPF derate timers
✔ Reset Aftertreatment System Learned Data

Cycle ignition and confirm no active codes.

🔧 Tools Required for Paccar Repair

  • Diesel laptop scanner kit

  • Nexiq USB-Link 2/3

  • Davie4 or Universal Diag

  • DEF refractometer (optional)

  • Multimeter for sensor testing

⭐ Pro Tip

Paccar derates are timer-based.
If you ignore regens or emissions faults long enough, the 1569 derate will trigger even if the truck is running fine.

🏁 Final Summary

SPN 1569 FMI 31 means:

❗ Your Paccar MX engine is in engine protection mode
❗ A deeper fault is triggering a derate
❗ You must diagnose and fix the underlying cause

Fixing this code requires:

✔ Full diagnostic scan
✔ Repairing primary fault
✔ Running a forced regen
✔ Resetting inducement timers

Ignoring this code WILL lead to a 5 MPH derate.
